A Slick New Way To Design Your 2004 & Newer Volvo VNM Direct Mount (LG) New Aftermarket Bumper.
Please Choose From The Following Options:
- Cutouts: None, Fog Light (Must Be At Least 16″ Tall), Tow Hitch, Vent, Or Whatever Combination You Want.
- Height: 13″, 16″, 18″, 20″, 22″, Or 24″.
- Finish: Polished Chrome Steel, Polished Stainless Steel, Or Powder Coated Painted Black Satin (Not Jet Black).

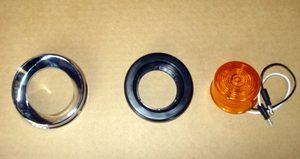

- Light Holes: Various Light Hole Configurations. Can Be Purchased With Or Without Lights. You Have A Choice Of Amber Oval 6″ LED Or Amber Round 2″ LED With The Wiring Harness. This Makes For A Clean & Fast Installation. To Prevent Damage During Shipping The Lights Are Included In A Separate Box And Are Not Installed.

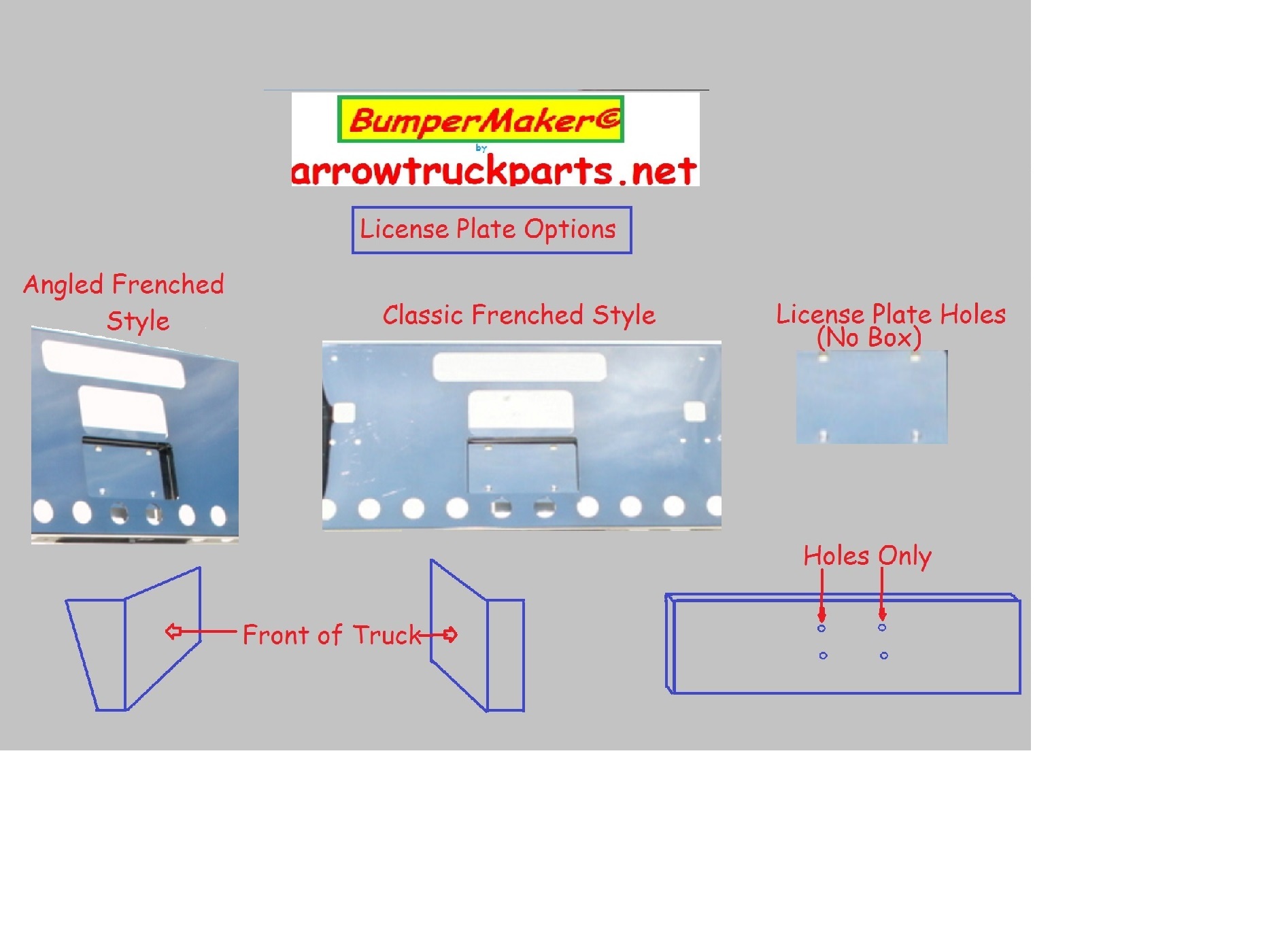

- License Plate Holes (Four 3/8″ Holes) Or
- Frenched License Plate Box: Built Into The Bumper & Includes An Amber Light Wand Which Lights Up The License Plate For A Classy Look.

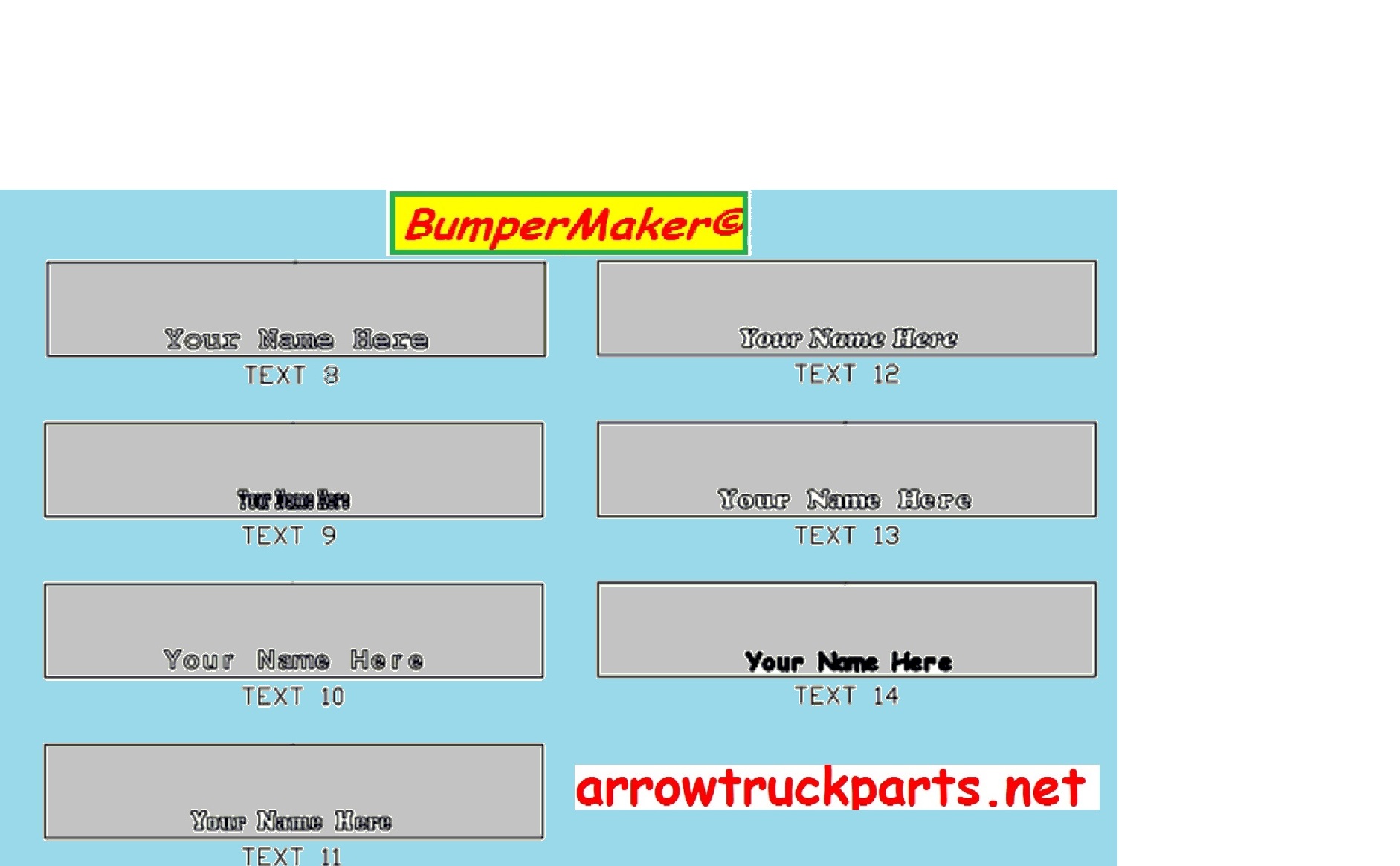

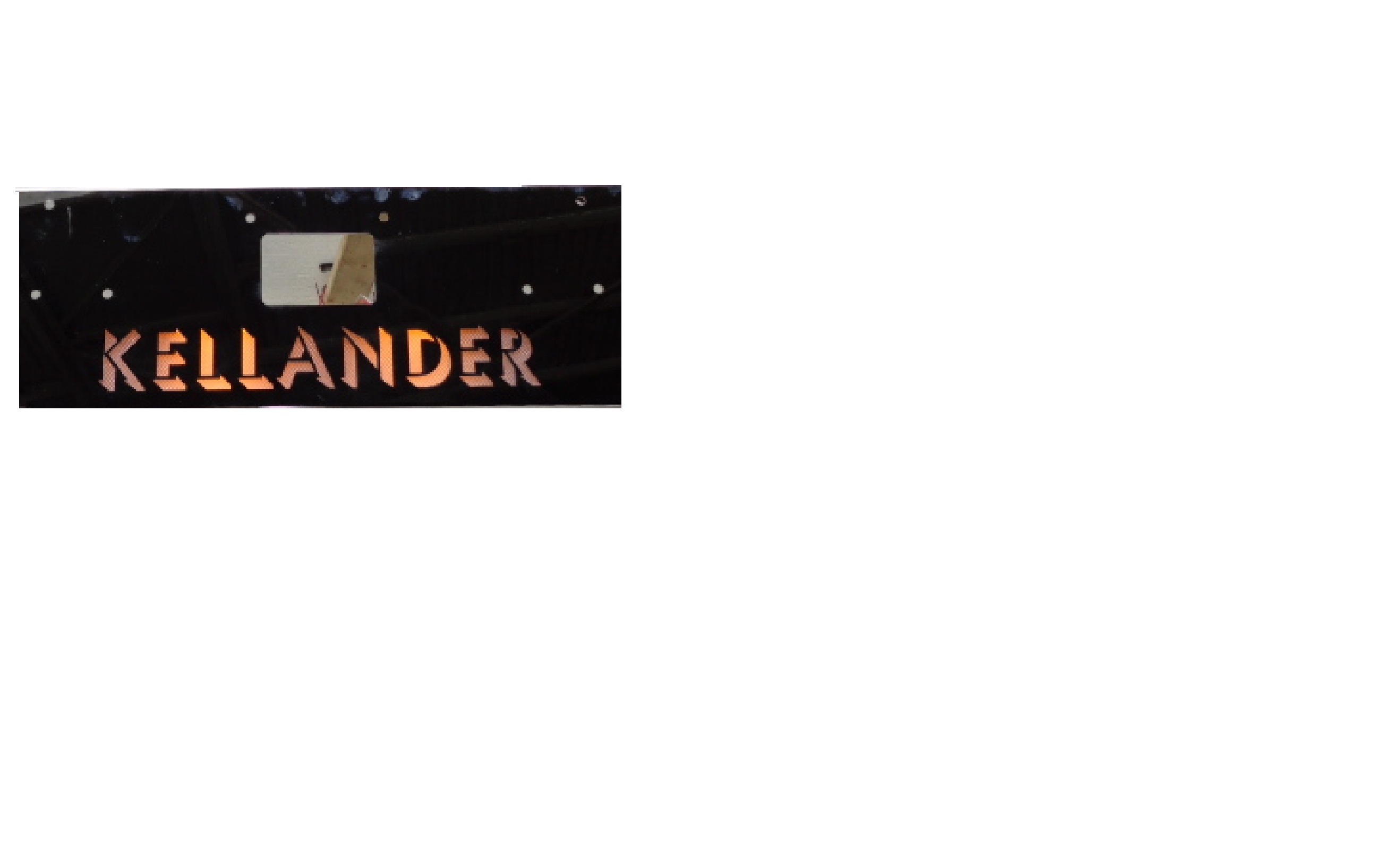

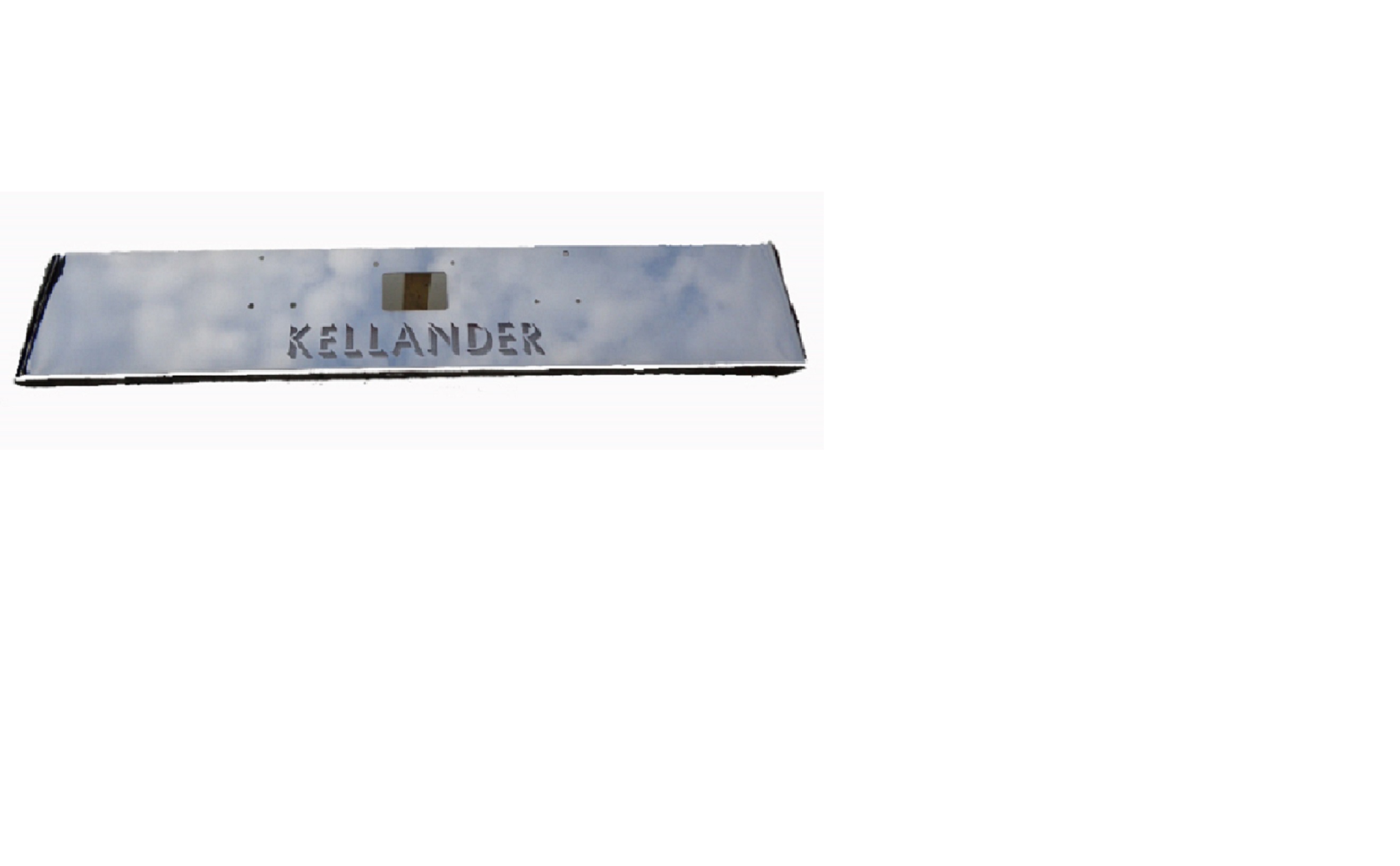

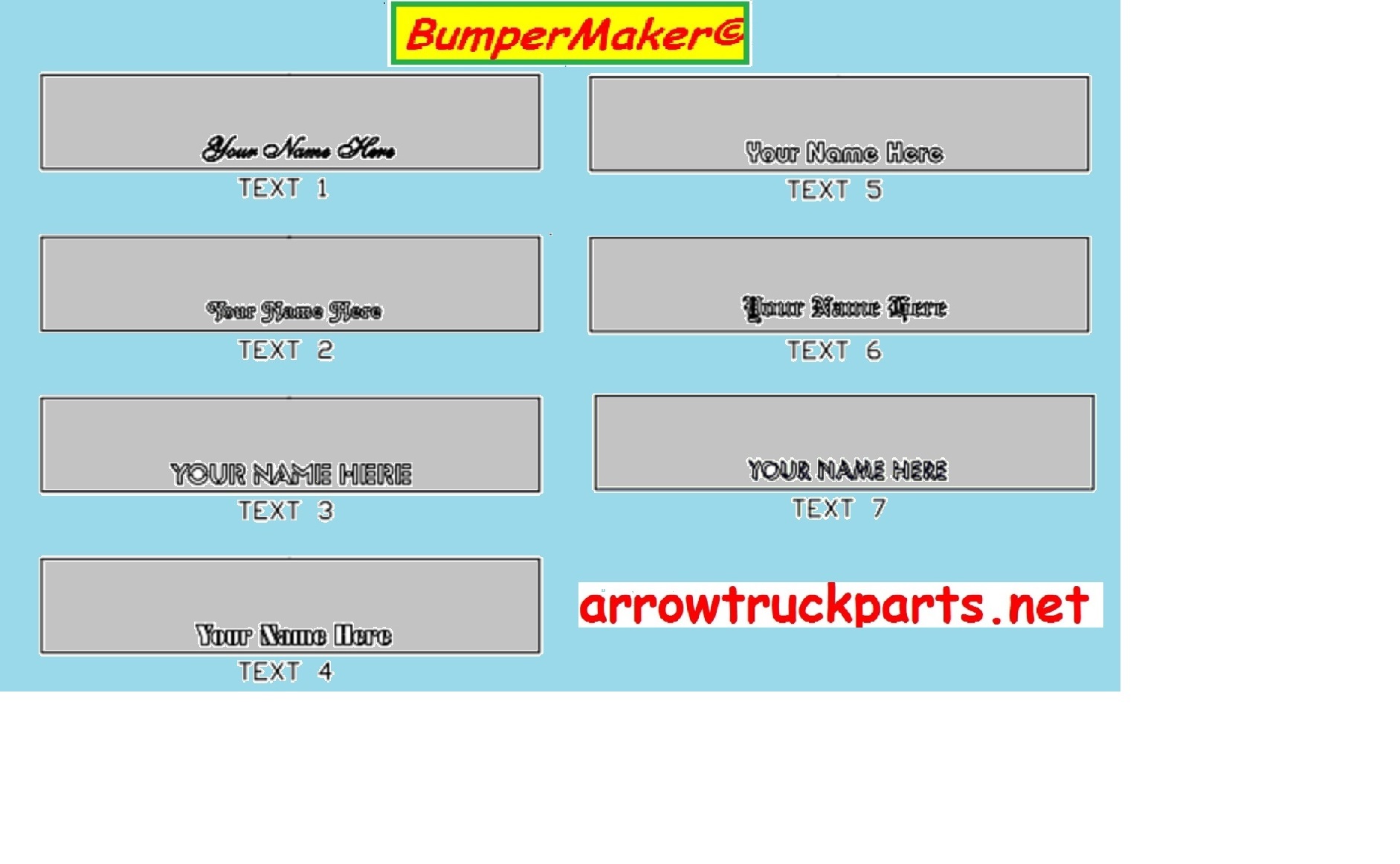

- Text & Light Box. Your Choice: With Or Without Light Box. Make A Statement And Have Your Truck Really Stand Out By Adding Custom Text To Your Bumper. You May Use Up To 24 Characters (Including Spaces). You May Then Illuminate It With An Optional Light Box. The Light Box Is Welded To The Back Side Of The Bumper And The Lights Are Attached To Holes In The Top Of The Light Box. After Consultation With You We Will Submit A Drawing For Your Approval.

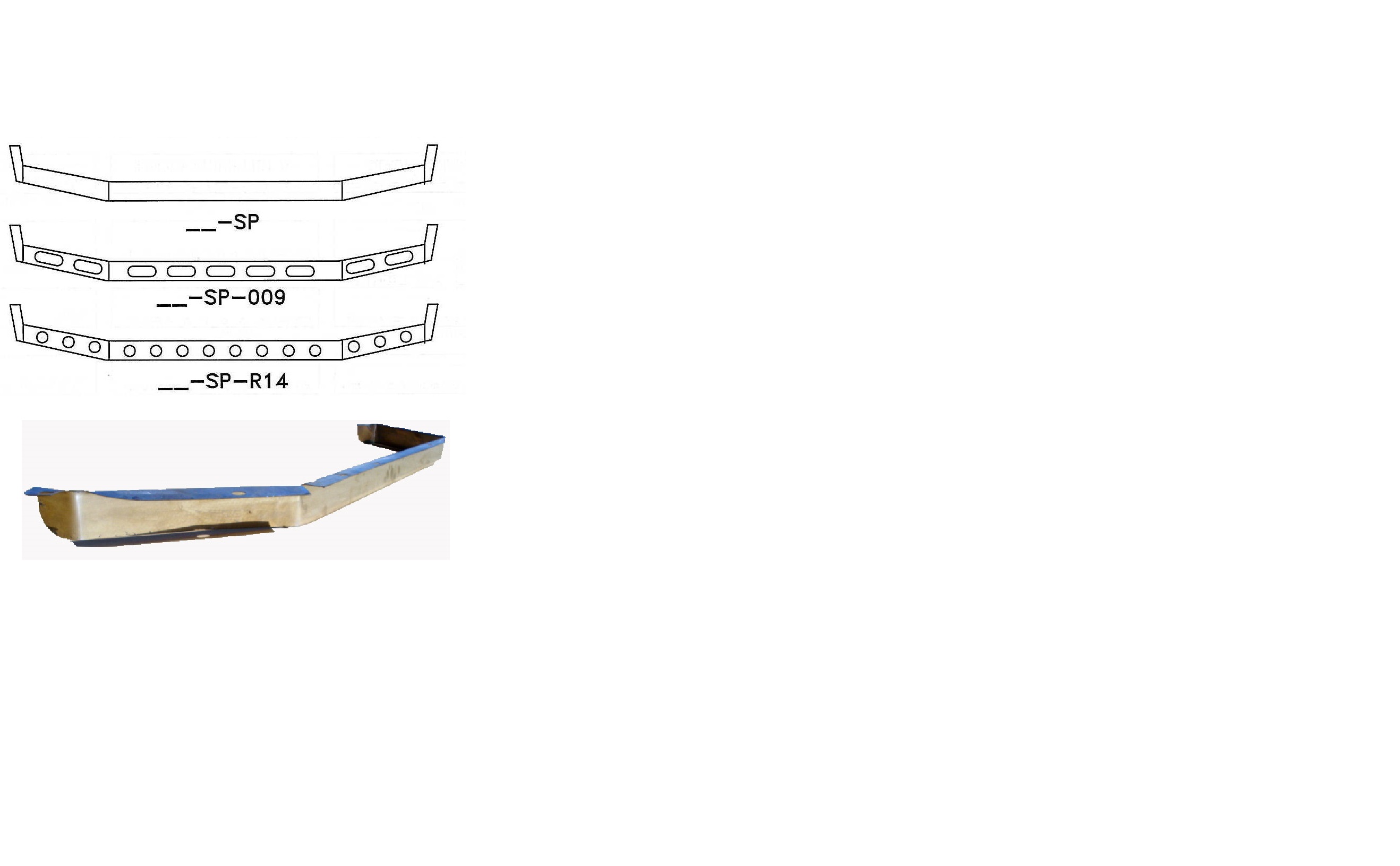

- Air Dam Manufactured From Polished Stainless Steel And Bolts To The Bottom Of The Bumper For A Uniquely Customized Look. It Can Be Made With Your Choice Of: No Light Hole Cutouts, 9 Six” Oval Light Hole Cutouts, Or 14 Two” Round Light Hole Cutouts, You Can Even Order It With The Lights And With The Wiring Harness. This Makes For A Clean & Fast Installation. To Prevent Damage During Shipping The Lights Are Included In A Separate Box And Are Not Installed.
- Bolt Kit: 6 Or 8 Stainless Steel Bolts, Flat Washers, Nylock Nuts, & Nylon Washers.
*Due To Size Limitations Not All Bumpers Can Be Built To These Specifications. If This Is The Case A Drawing Will Be Submitted To You For Your Approval.
This bumper is manufactured by Valley Chrome Plating, the premier bumper manufacturer in North America. Not all options available are shown. The bumper you want is only limited by your imagination. The bumper illustration shown may differ from the actual part you receive. There is no warranty on break back bumpers 20 inches or taller. Please contact us at 877-542-7769 or email us at email@example.com to ensure that this is the bumper you want. *Note: Most bumpers are not in stock and will take 10 to 15 days to build. Please allow time for shipping. When installing bumpers hand tighten only. Please do Not use an impact wrench.
||96 × 26 × 26 in
None, Square Fog Light (Must Be At Least 16" Tall), Square Fog Light (Must Be At Least 16" Tall) & Tow Hitch, Square Fog Light (Must Be At Least 16" Tall) & Tow Hitch & Vent, Square Fog Light (Must Be At Least 16" Tall) & Vent, Tow Hitch, Vent, Vent & Tow Hitch
Chrome Steel: 13 inches (Not Available With Fog Light Holes), Chrome Steel: 16 inches, Chrome Steel: 18 inches, Chrome Steel: 20 inches, Chrome Steel: 22 inches, Chrome Steel: 24 inches, Powder Coated Steel Black Satin (Not Jet Black): 13 inches (Not Available With Fog Light Holes), Powder Coated Steel Black Satin (Not Jet Black): 16 inches, Powder Coated Steel Black Satin (Not Jet Black): 18 inches, Powder Coated Steel Black Satin (Not Jet Black): 20 inches, Powder Coated Steel Black Satin (Not Jet Black): 22 inches, Powder Coated Steel Black Satin (Not Jet Black): 24 inches, Stainless Steel: 13 inches (Not Available With Fog Light Holes), Stainless Steel: 16 inches, Stainless Steel: 18 inches, Stainless Steel: 20 inches, Stainless Steel: 22 inches, Stainless Steel: 24 inches
Angled Oval 10 (6 front/ 2 each side), Angled Oval 10 (6 front/ 2 each side) W/ Amber Lights, Angled Oval 4 (0 front/ 2 each side), Angled Oval 4 (0 front/ 2 each side) W/ Amber Lights, Angled Oval 6 (6 front/ 0 each side), Angled Oval 6 (6 front/ 0 each side) W/ Amber Lights, Oval: 4 & Round 6 (10 front/ 0 each side), Oval: 4 & Round 6 (10 front/ 0 each side) W/ Amber Lights, Oval: 6 (6 front/ 0 side), Oval: 6 (6 front/ 0 side) W/ Amber Lights, Round: 17 (17 front/ 0 side), Round: 17 (17 front/ 0 side): W/ Amber Lights
|License Plate Options
Frenched License Plate Box, License Plate Holes (Four 3/8" Holes).
|Text - Light Box
Text Only, Text With Light Box
|Air Dam: Polished Stainless Steel
Air Dam: 14 Round Light Cutouts (No Lights), Air Dam: 14 Round Light Cutouts With 14 Amber LED Lights, Air Dam: 9 Oval Light Cutouts (No Lights), Air Dam: 9 Oval Light Cutouts With 9 Amber LED Lights, Air Dam: No Light Cutouts
6 Bolt Kit, 8 Bolt Kit
All oversized shipments will ship through standard LTL ground freight through our designated freight brokers. These shipments include: Bumpers, Hoods, Fairings, Grilles and Any Other Oversized Parts.
LTL Truck Carriers can only deliver to Commercial Business addresses. Any shipment to a residential address requires additional instruction with the freight carrier and additional shipment charges will apply.
Freight Delivery Instructions:
- It is advised to have at least 2 people available to carry heavy shipments such as bumpers. Truck Drivers are not required to help unload shipment.
- ALL SHIPMENTS ARE INSURED. Always inspect shipments before accepting the shipment to clarify any damage from the freight carrier through transit. If damage occurs accept the shipment only when the trucker notates damage and takes pictures into his system. Contact us with further instructions if damage occurs.
- Hood Shipments require forklift for delivery. **Lift gates not provided for delivery**
All other parts smaller than oversize rating will ship through standard ground freight either through UPS or USPS, depending on which carrier provides the fastest ship time. All in stock orders are shipped out same day. If there is any delay with shipment customer will be notified. Standard freight transit times are around 3-5 Business days depending on location of delivery and which warehouse items are shipped.
All parts shipped from our multiple warehouses are inspected and ensured to be free of any blemishes, cracks or manufacturer defects. Please contact us for any warranty issues.
- All Chrome bumpers are warrantied for 1 Year to be free of any manufacturer defect that includes any cracks, bends, or peeling of chrome plating.
- Custom bumpers taller than 18” are only warrantied to be delivered free of manufacturer defect.
- Any damage to bumpers during shipment transit are warrantied and insured by the freight carriers.
- All Hoods are warrantied to be free of any manufacturer defect for 1 year. This includes any cracks, deformations, or natural material degradation.
- It is required to dry fit the hood to the
- Damage incurred to hood from any external forces are NOT warrantied including damage from accidents, rocks chips, or physical damage.
Grilles, Headlights & All Other Body or Engine Parts:
- All items are guaranteed to be free from any manufacturer defect for 1 Year.
- Damages caused by any accidents, mishandling, or external influences are not covered under warranty.
