A Slick New Way To Design Your 2008 To 2015 Mack Pinnacle CXU613 Set Back Axle New Aftermarket Bumper. Mounting Brackets Can Be Purchased For An Additional Charge.
Mounting Bracket Fit Guide
- You May Reuse Your Truck’s Mounting Brackets If Your Bumper Is An All Stainless Steel Clad Aluminum Bumper.
- You Will Need To Purchase Mounting Brackets If Your Bumper Is Manufactured Of Resin Or
- The Upper Bumper Is Manufactured Of Stainless Steel Clad Aluminum And The Lower Portion Is Made From Resin.
Please Choose From The Following Options:

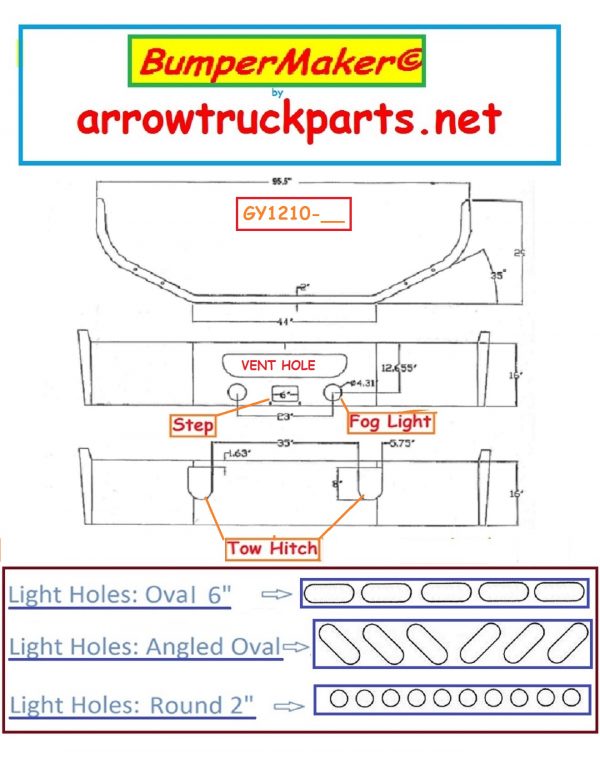

- Cutouts: None, Fog Light, Step, Tow Hitch, Vent, Or Whatever Combination You Want.
- Height: 14″, 16″, 18″, 20″, 22″, Or 24″.
- Finish: Polished Chrome Steel, Polished Stainless Steel, Or Powder Coated Black Satin (Not Jet Black).
- Mounting Brackets.

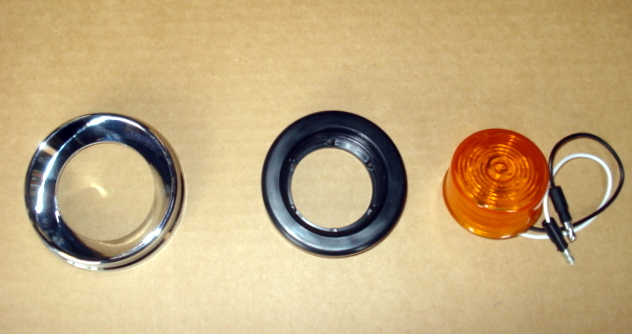

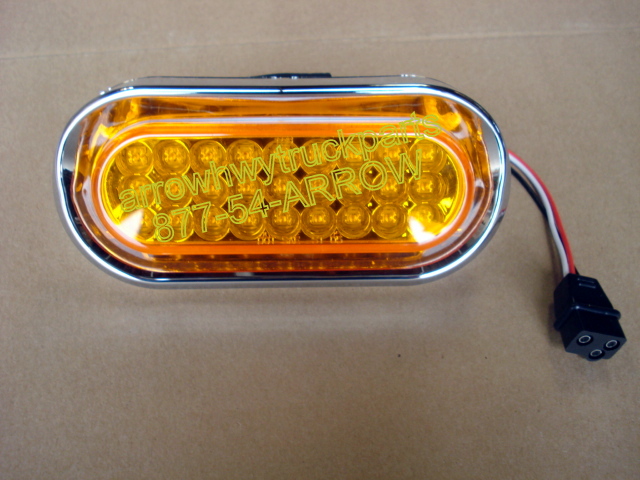

- Light Holes: Various Light Hole Configurations. Can Be Purchased With Or Without Lights. You Have A Choice Of Amber Oval 6″ LED Or Amber Round 2″ LED With The Wiring Harness. This Makes For A Clean & Fast Installation. To Prevent Damage During Shipping The Lights Are Included In A Separate Box And Are Not Installed.

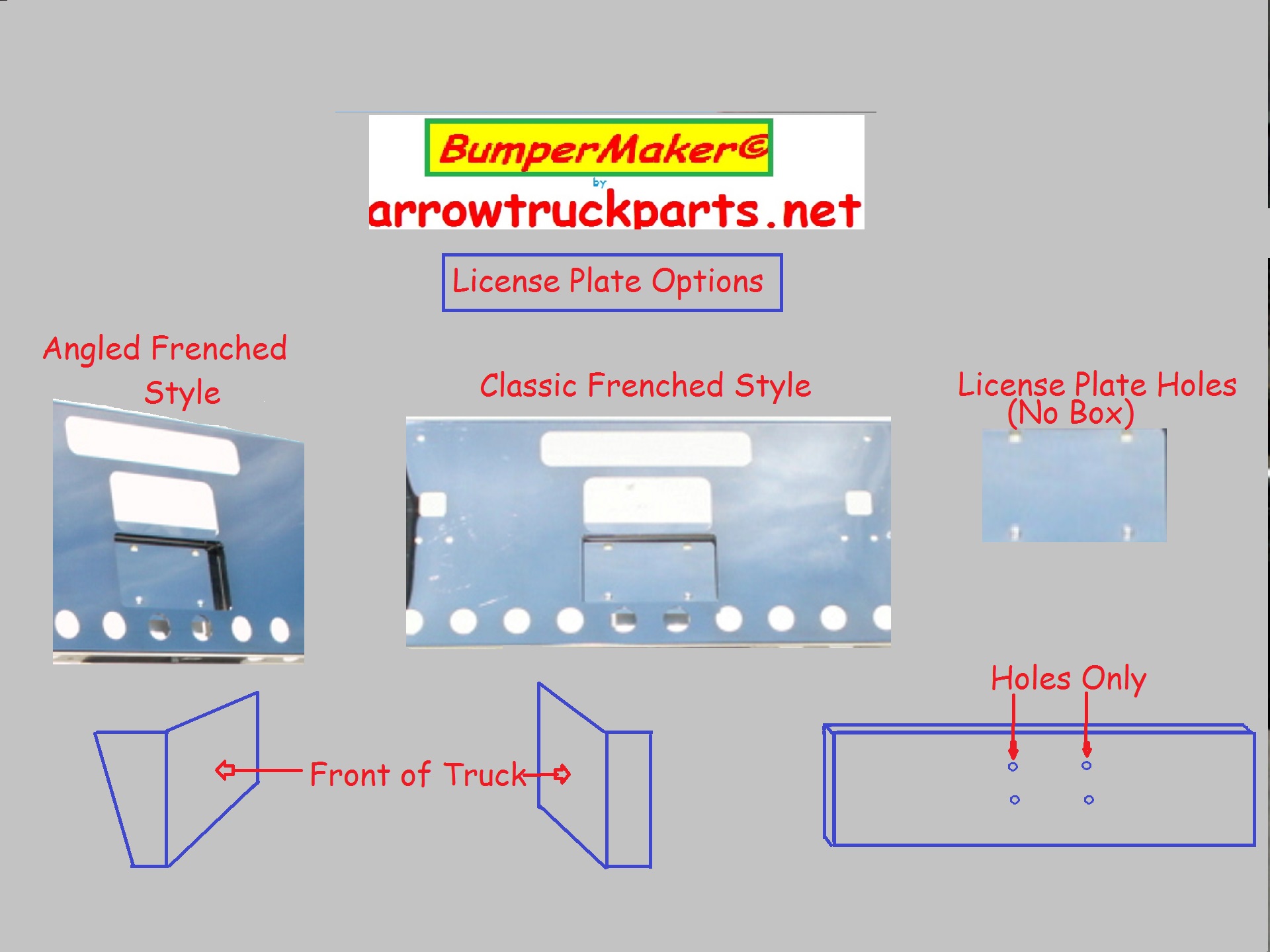

- License Plate Holes (Four 3/8″ Holes) Or
- Frenched License Plate Box: Built Into The Bumper & Includes An Amber Light Wand Which Lights Up The License Plate For A Classy Look.

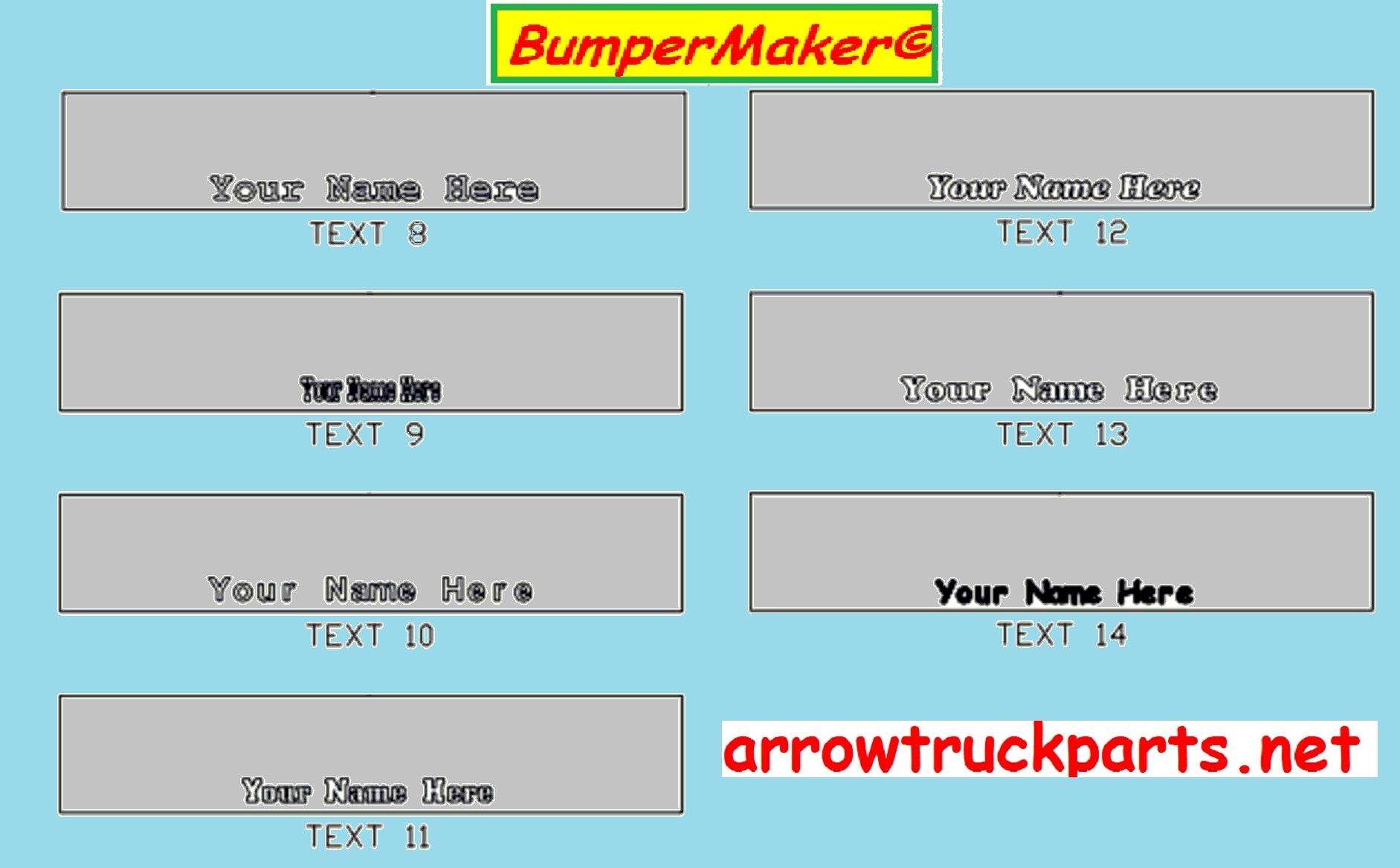

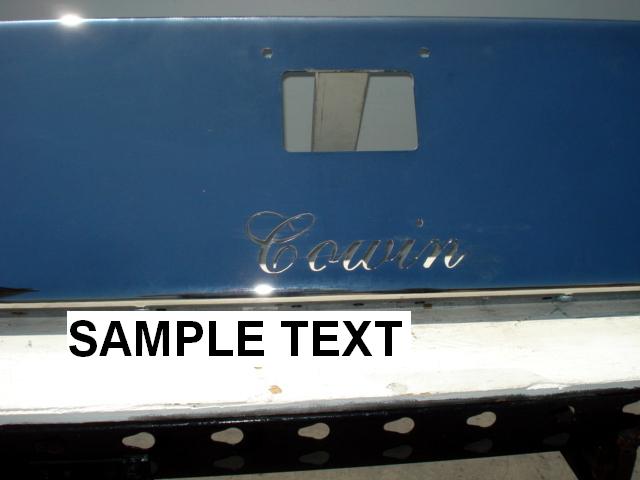

- Text & Light Box. Your Choice: With Or Without Light Box. Make A Statement And Have Your Truck Really Stand Out By Adding Custom Text To Your Bumper. You May Use Up To 24 Characters (Including Spaces). You May Then Illuminate It With An Optional Light Box. The Light Box Is Welded To The Back Side Of The Bumper And The Lights Are Attached To Holes In The Top Of The Light Box. After Consultation With You We Will Submit A Drawing For Your Approval.
- Air Dam Manufactured From Polished Stainless Steel And Bolts To The Bottom Of The Bumper For A Uniquely Customized Look. It Can Be Made With Your Choice Of: No Light Hole Cutouts, 9 Six” Oval Light Hole Cutouts, Or 14 Two” Round Light Hole Cutouts, You Can Even Order It With The Lights And With The Wiring Harness. This Makes For A Clean & Fast Installation. To Prevent Damage During Shipping The Lights Are Included In A Separate Box And Are Not Installed.

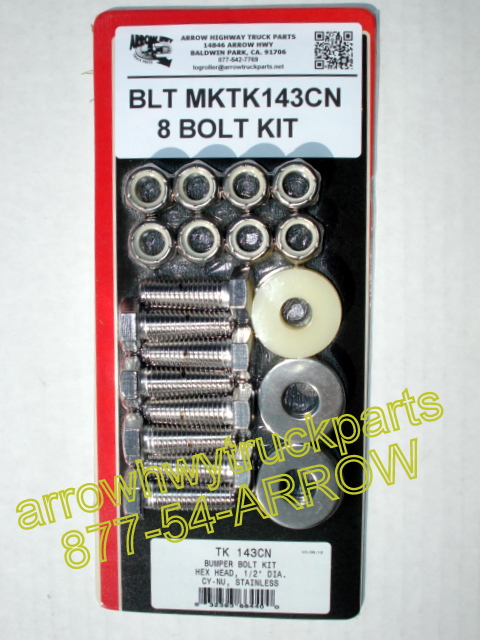

- Bolt Kit: 6 Or 8 Stainless Steel Bolts, Flat Washers, Nylock Nuts, & Nylon Washers.
*Due To Size Limitations Not All Bumpers Can Be Built To These Specifications. If This Is The Case A Drawing Will Be Submitted To You For Your Approval.
This bumper is manufactured by Valley Chrome Plating, the premier bumper manufacturer in North America. Not all options available are shown. The bumper you want is only limited by your imagination. The bumper illustration shown may differ from the actual part you receive. There is no warranty on break back bumpers 20 inches or taller. Please contact us at 877-542-7769 or email us at email@example.com to ensure that this is the bumper you want. *Note: Most bumpers are not in stock and will take 10 to 15 days to build. Please allow time for shipping. When installing bumpers hand tighten only. Please do Not use an impact wrench.
||96 × 26 × 26 in
Fog Light, Fog Light & Step, Fog Light & Step & Tow Hitch, Fog Light & Step & Tow Hitch & Vent, Fog Light & Tow Hitch, Fog Light & Vent, None, Step, Step & Tow Hitch, Step & Tow Hitch & Vent, Step & Vent, Tow Hitch, Tow Hitch & Vent, Vent
|Material - Height (Mounting Brackets Not Included)
Chrome Steel: 16 inches, Chrome Steel: 18 inches, Chrome Steel: 20 inches, Chrome Steel: 22 inches, Chrome Steel: 24 inches, Powder Coated Steel Black Satin (Not Jet Black): 16 inches, Powder Coated Steel Black Satin (Not Jet Black): 18 inches, Powder Coated Steel Black Satin (Not Jet Black): 20 inches, Powder Coated Steel Black Satin (Not Jet Black): 22 inches, Powder Coated Steel Black Satin (Not Jet Black): 24 inches, Stainless Steel: 16 inches, Stainless Steel: 18 inches, Stainless Steel: 20 inches, Stainless Steel: 22 inches, Stainless Steel: 24 inches
|Mounting Brackets to Replace Resin Bumper - Size
Brackets (2) Height – 20", Brackets (2) Height – 22", Brackets (2) Height – 24", Brackets (2) Height -16", Brackets (2) Height -18"
Angled Oval 10 (6 front/ 2 each side), Angled Oval 10 (6 front/ 2 each side) W/ Amber Lights, Angled Oval 4 (0 front/ 2 each side), Angled Oval 4 (0 front/ 2 each side) W/ Amber Lights, Angled Oval 6 (6 front/ 0 each side), Angled Oval 6 (6 front/ 0 each side) W/ Amber Lights, Oval: 4 & Round 6 (10 front/ 0 each side), Oval: 4 & Round 6 (10 front/ 0 each side) W/ Amber Lights, Oval: 6 (6 front/ 0 side), Oval: 6 (6 front/ 0 side) W/ Amber Lights, Round: 17 (17 front/ 0 side), Round: 17 (17 front/ 0 side): W/ Amber Lights
|License Plate Options
Frenched License Plate Box, License Plate Holes (Four 3/8" Holes).
|Text - Light Box
Text Only, Text With Light Box
|Air Dam: Polished Stainless Steel
Air Dam: 14 Round Light Cutouts (No Lights), Air Dam: 14 Round Light Cutouts With 14 Amber LED Lights, Air Dam: 9 Oval Light Cutouts (No Lights), Air Dam: 9 Oval Light Cutouts With 9 Amber LED Lights, Air Dam: No Light Cutouts
6 Bolt Kit, 8 Bolt Kit
